High-Precision Ceramic Filling Pump for Corrosive Liquids (Acids/Alkalis) – 1-10ml Adjustable FlowThe rotary ceramic plunger pump assembly is a kind of plunger precision metering pump used for metering and transporting or quantitatively filling chemical liquids and high purity liquids. In the process of plunger rotating motion, the axial linear motion is generated based on the adjustable pump head angle, and the stroke is precisely adjusted to control the input and output.
Characteristic of High-Precision Ceramic Filling Pump
High-Quality 316 Stainless Steel Contact Material
The metal parts in contact with liquids are crafted from 316 stainless steel, granting the pump body superior corrosion resistance—ideal for handling corrosive liquids in industries like pharmaceuticals or chemicals. Notably, the pump operates without generating trace impurities that could contaminate the liquid, ensuring product purity. Additionally, the pump head plunger assembly is removable, simplifying cleaning and maintenance processes, reducing downtime, and extending the pump’s service life.
Exceptional Metering Accuracy & Consistency
This series of metering pumps delivers extremely high metering accuracy and repeatability, with an error margin better than ±0.05% (five-thousandths). This level of precision is critical for applications requiring strict dosage control, such as reagent dosing in laboratories or pharmaceutical formulations, where even minor deviations could affect product quality or experimental results. The consistent performance also minimizes material waste and ensures stable production workflows.
Widely Used X2 Series with Simple Structure
Among the series, the X2 series stands out as the most widely applied model, thanks to its simple structure. The straightforward design not only lowers the learning curve for operation but also reduces the likelihood of mechanical failures. Its ease of use and reliability make it suitable for various industries, from small-scale labs to medium-sized production lines, meeting diverse metering needs without excessive complexity.
Industry applications
It can be used for matching and reforming the filling part of the packaging machine. It is suitable for filling of electrolyte, medicinal liquid, biochemical reagent, chemical liquid, essential oil, essence liquid, emulsion, perfume, nail oil and other medium-low viscosity homogeneous liquid materials.
Technical data of High-Precision Ceramic Filling Pump
| Item No. | -03 | -06 | -09 | -12 | -15 | -18 | -21 | -24 | -27 |
| Pump material | Ceramic parts: high purity alumina(Al2O3), zirconia(ZrO2), silicon carbide(SiC), etc. |
| Metal part: 316L stainless steel |
| Filling range | 4-80ul | 10-140ul | 20-240ul | 50-700ul | 0.2-1.5ml | 0.2-2.9ml | 0.6-6ml | 1-12ml | 2-25ml |
| Bore diameter | φ4 | φ5 | φ7 | φ10 | φ13 | φ15 | φ22 | φ25 | φ36 |
| Motor RPM | 400 | 350 | 300 | 250 | 200 |
| Accuracy | Better thatn ±0.5% |
| Motor type | 2 phase 4 line No.42 | 2 phase 4 line No.57 | 2 phase 4 line No.86 |
| Power supply | AC 220V 50/60Hz (110V optional) |
| Power | 75w | 75w | 75w | 150w | 150w | 150w | 240w | 240w | 240w |

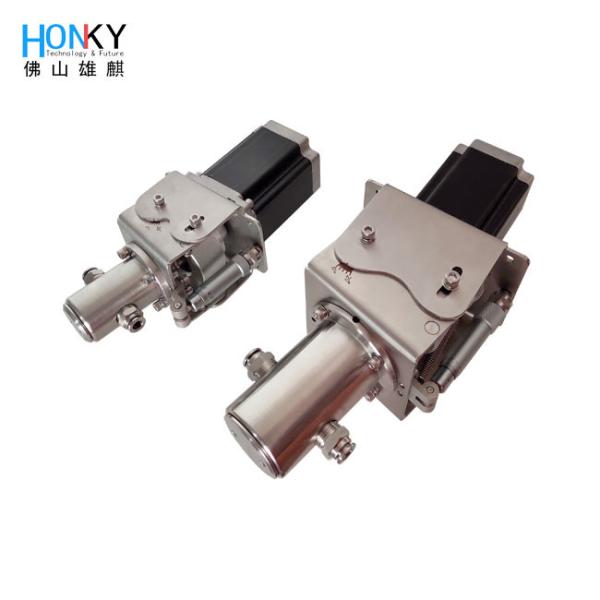

Product display of High-Precision Ceramic Filling Pump
Application area
1. ODM and OEM products design;
2. Automatic manufacturing line design;
3. Cosmetic product packing;
4. Pharmaceutical and bio-reagent product packing;
5. Laboratory Liquid dispensing;
6. Lithium Battery Liquid dispensing;
7. Ceramic pump and ceramic pump part design;
8. Other area's material filling;
Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
